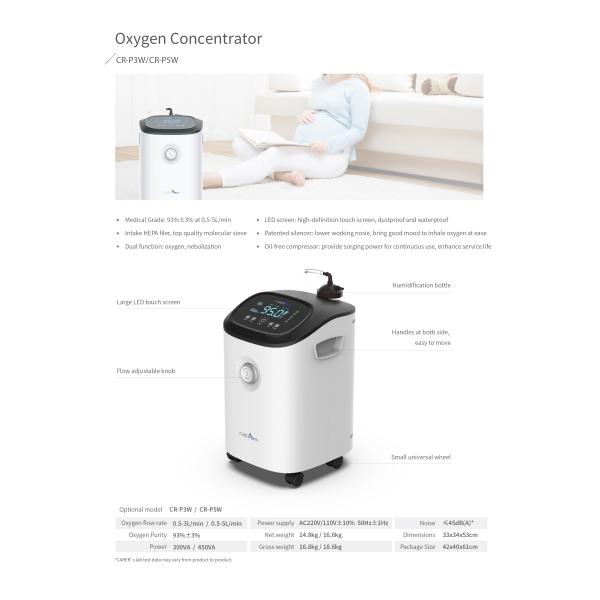

0.5-3L Flow Rate With 93% Purity Adjustable Home Care Medical Oxygen Concentrator For Health Care
Product Parameter
| Oxygen Concentrator Flow Rate | 0.5-3L min |
| Purity | 93+/-3% |
| Power Supply | AC220V+/-22V 50Hz+/-1Hz |
| Power | 300VA |
| Noise | 48dB(A) |
| Service Environment | Temperature:5 - 40℃; Humidity: Under 30 - 75% RH(No condensation) |
| Overall Dimensions(mm) | (W)330 x (D)340 x (H)530mm |
| Net Weight | 14.8kgs |
| Characteristic | Instant humidifying cup for easy access; Touch-controlled flow regulation, more accurate and convenient; High efficiency lithium molecular sieve; Low decibel operation, quiet oxygen. |
| Certificate | CE Certificate |
| Warranty period | 1 years for whole macnine; 3 years for Air Compressor; Lifelong maintenance. |
Working Principle Description
Our home oxygen concentrator is the medical molecular sieve oxygen generator.
Principle
The concentrator takes clean compressed air as raw material and uses high efficiency lithium molecular sieve as adsorbent to produce oxygen from air under certain pressure.
The compressed air after purified and dried , were carried out in the adsorber by pressuring adsorption and decompression desorption. Due to the aerodynamic effect, the diffusion rate of nitrogen in the pores of lithium molecular sieve is much higher than that of oxygen. Nitrogen is preferentially adsorbed by lithium molecular sieve, and oxygen is enriched in the gas phase to form finished oxygen.
Then, the adsorbent desorbs the adsorbed impurities, such as nitrogen, to achieve regeneration after decompression to atmospheric pressure. Generally, two adsorption towers are set in the system, one is for adsorption and oxygen generation, the other is for desorption and regeneration.
PLC program controller is used to control the opening and closing of pneumatic valve to make the two towers circulate alternately, so as to obtain higher purity oxygen (93%±3).
Product Advantages
Oxygen is a prescription drug in European and American countries and Japan. According to different needs of users, doctors will give appropriate prescription suggestions. Therefore, the quality of oxygen (including oxygen concentration, pressure and flow), the time of oxygen intake and the accuracy of oxygen flow are very important for users' home health care and oxygen therapy.
